    Intelligent light steel frame villa keel forming machine

    Ask Lasest Price
    Brand Name : LIMING
    Model Number : LM-lLGS1
    Certification : CE、BV、ISO
    Price : Negotiation
    Payment Terms : T/T, L/C, D/A, D/P
    Supply Ability : 450set/Year
    Delivery Time : 30 work days
    • Product Details
    • Company Profile

    Intelligent light steel frame villa keel forming machine

    Intelligent light steel frame villa keel forming machine

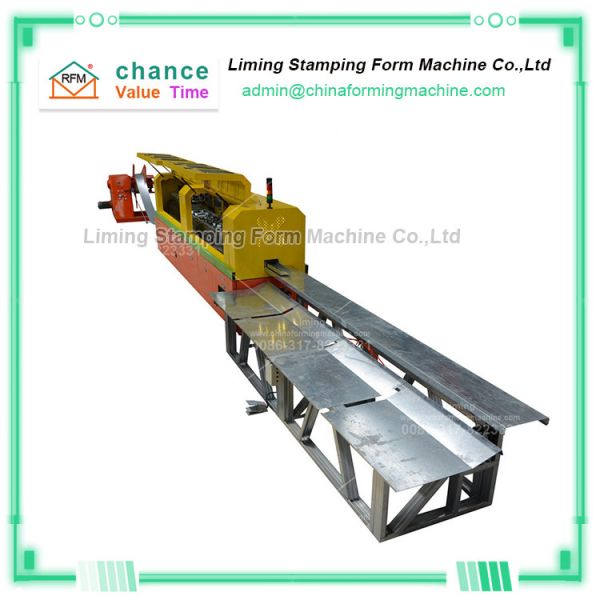

    The Intelligent light steel frame villa keel forming machine is a steel frame cold rolling mill that can realize continuous automatic production.

    The Intelligent light steel frame villa keel forming machine includes hydraulic expansion uncoiler, straightening equipment, forming system, stamping equipment, cutting equipment, hydraulic station, electrical control system and purlin supporter.


    The Intelligent light steel frame villa keel forming machine adopts PLC control and AC frequency conversion speed regulation technology to realize continuous automatic production.


    The Intelligent light steel frame villa keel forming machine is energy-efficient and efficient. This is a steel structure production machine.


    Technical parameters of Intelligent light steel frame villa keel forming machine


    Size3850*800*1100mm
    Weight2500KGS
    Main Servo Motor Power7.5KW
    Hydraulic Power for Punching & Cutting7.5KW
    Forming Steps7 steps roll forming+2 steps reshaping
    Processing SpeedTypical Drywall Panel Frame 600-720m/h
    Roll Forming Speed without punch:2700m/h
    Over All Production Capacity:3-4tons/8hours
    Voltage380V/50HZ/3PH
    Flange Height38mm
    Web Width89mm
    Lip Width9mm
    Tolerence Of Cutting & Punching±0.5mm
    Tolerence Of Forming0.75mm
    Forming Thickness0.7mm -1.2mm

    Quality Intelligent light steel frame villa keel forming machine for sale
